An Alfa Laval PureSOx scrubber system can be configured in three different operating arrangements – all of which can handle multiple exhaust gas sources. Most customers select a hybrid scrubber, which balances economy with operating flexibility.

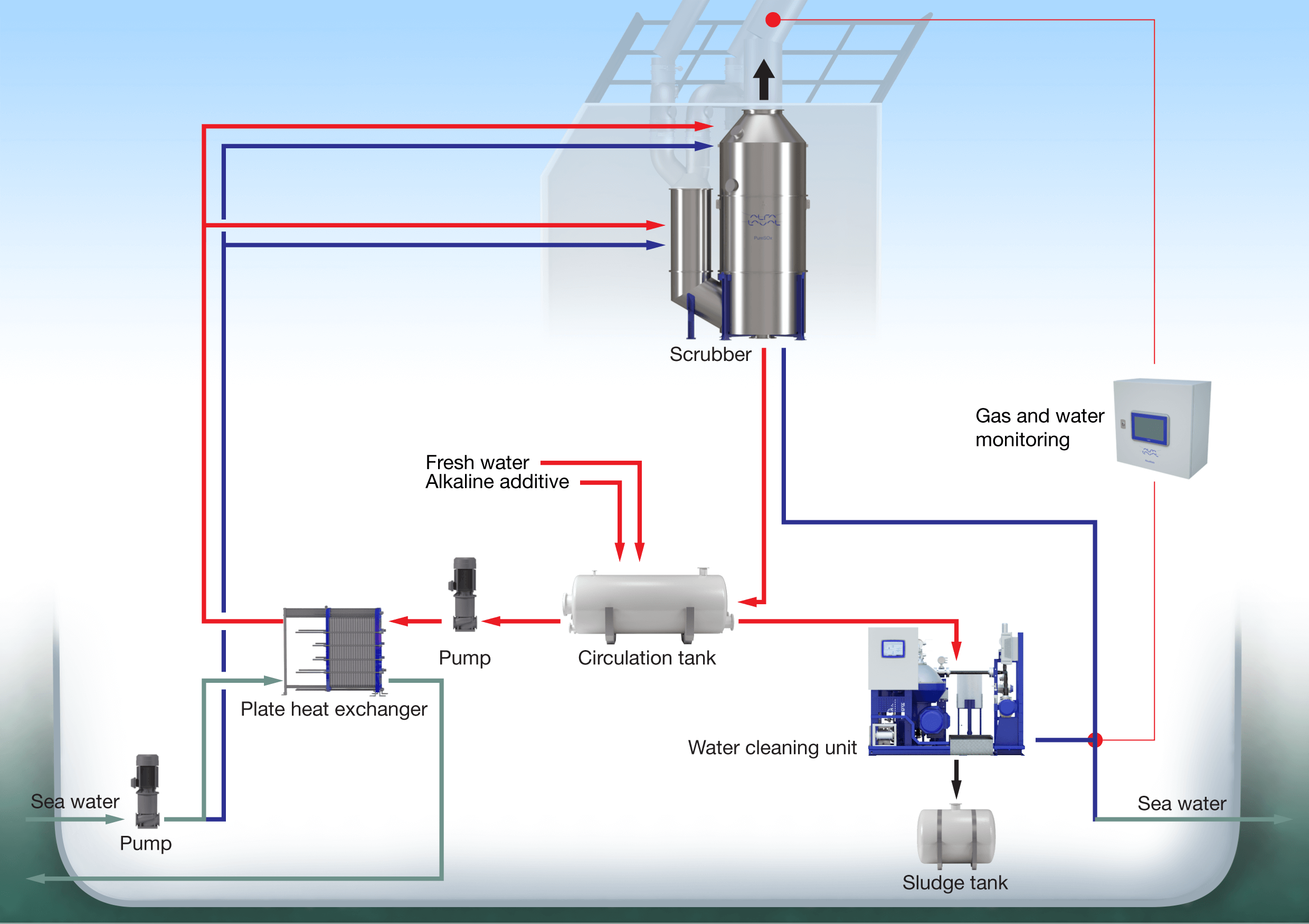

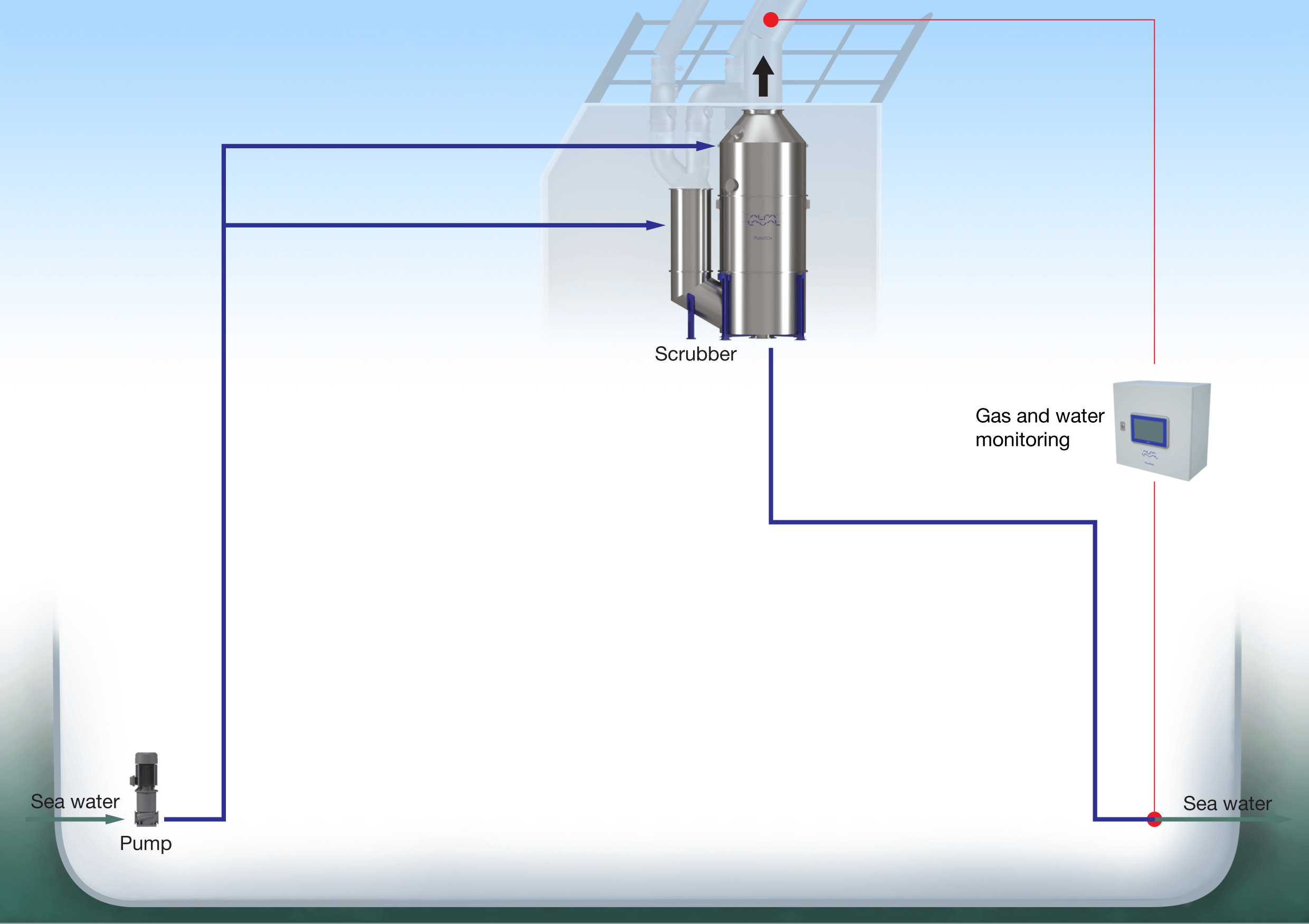

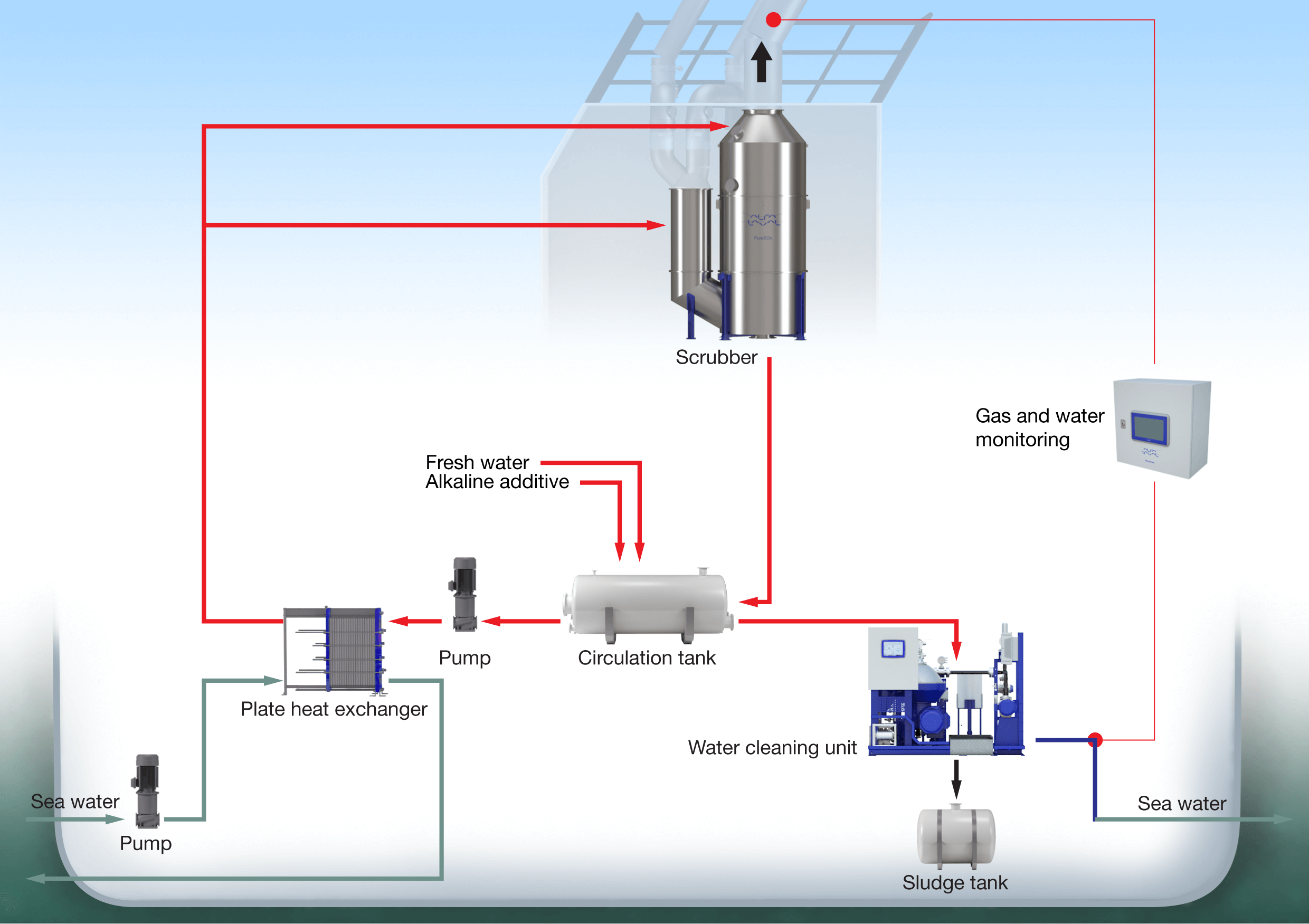

In a hybrid scrubber arrangement, both open-loop and closed-loop modes are readily available. Open-loop operation reduces costs whenever possible, but a switch to closed-loop operation can be made whenever local water discharge regulations demand it.
Based on the Alfa Laval Remote Emission Monitor (ALREM) reporting system, PureSOx Connect simplifies proof of compliance thanks to user-friendly, graph-based reporting. Operators can easily review data on the Alfa Laval Touch Control or via an online portal.
The capabilities of the ALREM go far beyond reporting and includes additional cloud-based analysis and diagnostic services. Watch this video to learn more.
Alfa Laval is at the forefront of marine scrubber technology, having worked with it for over 50 years. PureSOx is continuously being developed, both at the Alfa Laval Test & Training Centre and on board.
Alfa Laval has worked with marine scrubbers for decades as part of inert gas production systems for tankers. In addition, PureSOx builds directly on Alfa Laval’s core technologies of fluid handling, heat transfer and separation. Expertise in centrifugal separation – the most reliable method of water cleaning at sea – is especially important for a closed-loop or hybrid scrubber system, where it is needed to ensure compliant cleaning of the circulation water.
Much of the ongoing development of Alfa Laval PureSOx occurs at the Alfa Laval Test & Training Centre, a unique research facility located in Aalborg, Demark. With its 1350 m2 testing space, the centre is a full-size machine room on land, with complete process lines integrated around a 2 MW marine diesel engine. The 1.5 MW PureSOx scrubber installed here can be pushed to its limits under controlled conditions, which accelerates both the speed and quality of testing.
Alfa Laval provides complete documentation specific to shipyard needs. The shipyard documentation is divided into:
- Advice for the specific vessel
- PureSOx Design Guide for engineering, P&IDs and equipment drawings
- PureSOx Installation Manual
To obtain shipyard documentation or more information, please contact Alfa Laval.
