Alfa Laval equipment for refineries

Compabloc welded plate and block heat exchanger.jpg

Alfa Laval Compabloc

A welded plate heat exchanger with superior heat transfer efficiency and low fouling tendency. Fully accessible for mechanical cleaning and available in a wide range of materials.

Suitable for interchanger, reboiler, condenser, steam generator, cooler and steam heater duties. Alfa Laval has delivered more than 2600 Compabloc heat exchangers to refinery processes.

Design temperature: -100–400°C (-148°F–752°F)
Design pressure: FV–60 bar (FV–870 psi)

Compabloc product info


Alfa Laval SpiralPro

A highly efficient, robust and compact welded spiral heat exchanger with exceptional resistance to fouling as well as full access to the heat transfer surfaces for easy cleaning as required.

Suitable for use in interchanger, reboiler, condenser, steam generator, cooler and steam heater duties with one or two highly fouling media. Alfa Laval has delivered more than 370 SpiralPro heat exchangers to refinery processes.

Design temperature: -50-450 °C (-58°F–842°F)
Design pressure: FV–60 bar (FV–870 psi)

SpiralPro product info


Alfa Laval SpiralCond

A welded spiral heat exchanger capable of operating with extremely low pressure drop. The perfect choice for condensing vapours at high vacuum and available in different configurations, e.g. with multiple cooling media or integrated in columns.

Suitable for use as top, reflux or vent condensers as well as an excellent as reboiler or steam generator when operating with fouling fluids. Alfa Laval has delivered more than 30 SpiralCond exchangers to refinery processes.

Design temperature: -50-400°C (58°F–842°F)
Design pressure: FV–60 bar (FV–870 psi)

SpiralCond product info

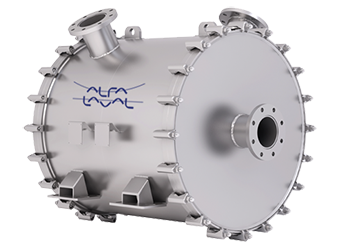

Alfa Laval DuroShell plate heat exchanger

Alfa Laval DuroShell

A welded plate-and-shell heat exchanger with high thermal performance and outstanding resistance to fatigue. Designed for use in applications with high temperatures and pressures where fluctuating operating conditions cause fatigue in traditional plate-and-shell heat exchangers.

Suitable for use with liquids, gases and two-phase mixtures in applications such as syngas cooling and condensing, as well as in utility applications such as tank heating/cooling and steam condensing.

Design temperature: -196–400°C –(320°F–752°F)
Design pressure: FV–100bar (FV–1450 psi)

DuroShell product info

Alfa Laval Packinox plate heat exchanger

Alfa Laval Packinox

A fully welded, compact plate-and-shell heat exchanger with superior thermal efficiency at very low pressure drop. Ideal for energy recovery in combined feed-effluent applications with large heat duties, high pressures and temperatures.

Each Packinox is custom-built and optimized for its specific process requirements. Alfa Laval has delivered around 500 Packinox heat exchangers to refinery and aromatics production processes.

Design temperature: up to 650°C (1,200°F)
Design pressure: 3–140 bar (434–2,031 psi)
Maximum differential pressure: 55 bar (798 psi)

Packinox product info


Alfa Laval Olmi process shell-and-tube heat exchangers

A fully customized shell-and-tube heat exchanger for use in critical applications with the highest demands for reliability. Available in any high-grade material and with several different closure solutions such as threaded plug or diaphragm closure design.

Suitable as combined feed-effluent interchangers or recycle preheaters in high-pressure hydrotreatment and hydrocracking processes. Alfa Laval has delivered more than 100 high pressure/temperature Olmi process shell-and-tube heat exchangers to refinery processes.


Design temperature: -150–1,000°C (-238°F–1,832°F)
Design pressure: FV–300 bar (0–4,351 psi)

Olmi product info

Alfa Laval Olmi Reforming Process Gas Boiler

Alfa Laval Olmi process gas boilers

A complete package for production of high-pressure superheated steam using heat from your hydrogen reformer. Includes process gas boiler, steam drum (including risers and downcomers), steam superheater and boiler feed water preheaters, with an optimized design for maximal heat recovery, highest reliability and low lifecycle cost. Alfa Laval has delivered more than 20 Olmi process gas boiler packages to hydrogen production processes.

Design temperature: -150–1,000°C (-238°F–1,832°F)
Design pressure: FV–300 bar (0–4,351 psi)

Olmi PGB product info

Alfa Laval Niagara WSAC_modular_640x360.png

Alfa Laval Niagara Wet Surface Air Cooler (WSAC)

A fully customized, closed-loop evaporative cooling systems characterized by high performance, low operating costs, a compact design and reliable operation. The single approach to the ambient wet-bulb temperature means a Niagara WSAC system can cool to a lower temperature than a traditional dry air cooler or a closed water loop/cooling tower combination.

Suitable for a wide range of cooling and condensing tasks, Alfa Laval has delivered more than 20 WSACs to refinery processes.

Design temperature: -0–232°C (32°F–450°F)
Design pressure: FV–170 bar (0–2500 psi

WSAC product info


Alfa Laval Olmi finned tube air heat exchangers

A versatile, engineered-to-order dry air heat exchanger for use in critical applications with the highest demands for reliability. Available in a wide range of high-grade materials, with a unique vapour inlet distribution chamber that minimizes risk of salt formation and corrosion.

Suitable for reactor effluent cooling at high pressures and hydrogen content and can also be used for a wide range of other cooling and condensing tasks. Alfa Laval has delivered more than 600 high-pressure Olmi air heat exchangers to refinery processes.

Max design temperature: 400°C (752°F)
Design pressure: 613 bar (8,891 psi)

Air cooler product info
