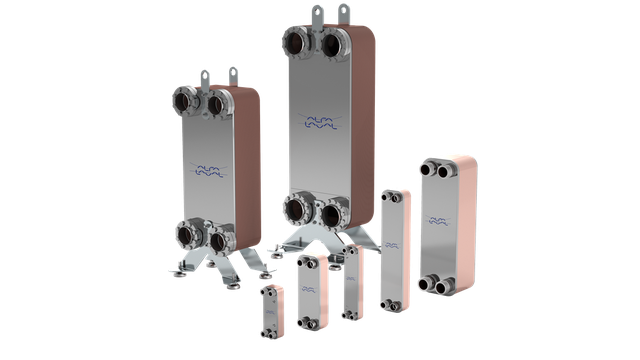

High efficiency, superior mechanical resistance and a compact footprint make Alfa Laval’s CB line of brazed plate heat exchangers ideal for demanding installations where space is limited. That’s why they have become a common replacement for other types of heat exchangers in HVAC duties, refrigeration, process heating and cooling, oil cooling, domestic hot water, solar heating and much more.
More with CB
- Wide variety of models and configurations make it possible to get the perfect fit for your application and duty
- Alfa Laval’s asymmetric FlexFlow plate design enables efficient performance with any type of refrigerant or in any liquid-to-liquid application
- The patented IceSafe design protects CB units from crystal formation in refrigerant condenser duties where defrosting is required
- For secondary heat exchangers used with gas boilers, Alfa Laval offers a range of extra-small asymmetric CB units
- One compact design available in models for pressures ranging from 32 to 90 bar
Alfa Laval CB brazed heat exchangers offers several advantages over traditional heat exchangers used in industrial, HVAC and refrigeration installations. Increased thermal efficiency within a compact unit makes it possible to tackle large-capacity duties where installation space is limited. The gasket-free design also allows for reliable performance in high-pressure and high-temperature applications. With a huge range of available sizes, capacities, plate patterns and connections, along with single-, dual- and multi-pass configurations, the available duties are practically endless. Additionally, CB units are available with AHRI certification as well as major pressure vessel and marine industry approvals.
Modern thinking for more possibilities
Introducing the Alfa Laval CB210 brazed plate heat exchanger
CB210 combines all of Alfa Laval leading heat exchanger innovations into one
new, groundbreaking design. With higher capacity, improved efficiency and superior
thermal performance, you get more possibilities for today’s heating and cooling duties.
CB units can be used in a variety of residential positions, including for domestic hot water and solar heating applications.
Alfa Laval brazed heat exchangers can be used as condensers, economizers, evaporators and more.
The efficient, robust and compact design of CB units is ideal for demanding engine duties.
AHRI for HVAC
Alfa Laval CB heat exchangers are available with certification according to the Liquid-to-Liquid Heat Exchanger programme of The Air-Conditioning, Heating, and Refrigeration Institute (AHRI). For heat exchangers used in HVAC applications, this programme offers independent, third-party verification of thermal performance according to manufacturers’ published specifications.
How it works
Thin, corrugated stainless steel transfers heat, while copper brazing seals the media in the plate pack. The result is a high-efficiency heat exchanger that consists solely of surfaces that actively contribute to heat transfer. Contact points between the plates are also brazed, which improves resistance to pressure and temperature fatigue.
The arrangement of the channels formed between the plates ensures that media flow through alternate channels, generally in a countercurrent pattern, which further optimizes the efficiency of the heat transfer. A co-current configuration is also available.
View the animation to learn more.
Unique features to boost your performance
With more than 80 years of experience in heat transfer innovation, Alfa Laval knows what it takes to deliver high-performance solutions for any application. Our experts continuously develop new innovations that give our CB line of brazed plate heat exchangers more reliable and efficient performance.
Unparalleled strength for demanding duties
Our innovative plate designs support the widest range of high-temperature and high-pressure applications. Units can run using thinner plates and fewer plates, which translates to less raw material, lower energy consumption, reduced refrigerant charge and a longer equipment lifecycle.
A future-proof investment for tomorrow’s refrigerants
As an innovative driver in the development of solutions for natural refrigerants, Alfa Laval brings years of experience working with products that enable the use of new-generation and low-GWP refrigerants to help you meet sustainability goals and any legislative requirements.
Superior thermal performance
Alfa Laval’s patented asymmetrical plate design is one of many unique innovations that gives you improved thermal efficiency thanks to optimized pressure drop and increased turbulence. In addition to cutting energy consumption, that means reducing refrigerant volumes and raw materials.
Controlled, non-destructive freezing
For applications that require it, we can supply plate heat exchangers designed to allow ice crystals to form under certain operating conditions, but displaced from sensitive areas. This ensures both reliable performance and a long product life.
Finding your Alfa Laval CB heat exchanger
The Alfa Laval CB line of brazed plate heat exchangers are available in five models, corresponding to different maximum design pressures and optimized for use with different refrigerants:
- CB units – 32 bar
- CBH units – 45 bar
- CBK units – 49 bar
- CBP units – 60 bar
- CBXP units – 90 bar
To make sure you get the best model for your duty, Alfa Laval offers guidance and useful tools. Begin by exploring our product guide, an interactive resource designed to help you quickly find your ideal solution.
Do you have questions about our portfolio of brazed and fusion bonded plate heat exchangers? We can work with you to find the optimal model to fit your specific needs.
