Let the Alfa Laval PlusClean® cleaning nozzle revolutionize tank cleaning in your hygienic processes. Paired with your top-mounted tank cleaning device, the PlusClean® smoothly integrates into the tank wall or bottom. When activated during Cleaning-in-Place (CIP), it hits shadow areas with a fan of pressurized cleaning media, guaranteeing 100% impact cleaning coverage, up to 80% savings in water and cleaning agent costs, and 0% contaminants.
Boost product yield higher with unprecedented 100% tank cleaning coverage
- Get 100% impact cleaning coverage
- Up to 80% reduction in water and cleaning media consumption
- Eliminate product contamination risks and raise product yield
- Meet the highest hygienic requirements
- Low total cost of ownership due to very low maintenance requirements and reduced water, cleaning media and wastewater costs

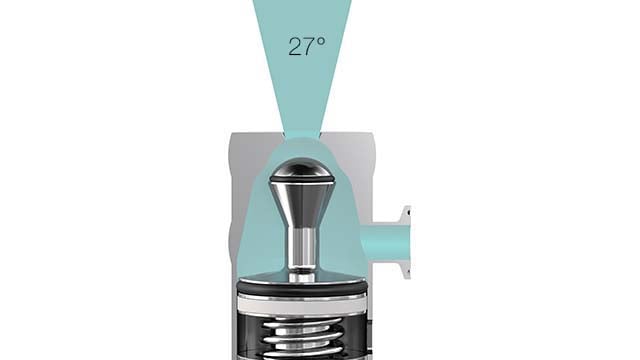

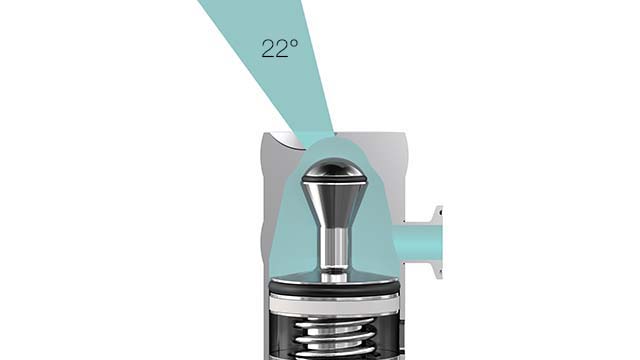

The PlusClean® optimizes the cleaning efficiency of the primary cleaning device, regardless of whether a static spray ball, rotary spray head or a rotary jet head. Depending on the overall design of your tank, you can configure the cleaning nozzle either in the tank wall or on the tank bottom. Choose one of three different spray patterns and one of two different weld plates for mounting to customize your cleaning nozzle to your requirements.
Special product line
In addition to the standard Alfa Laval PlusClean® with a piston activated by the cleaning media, a special pneumatic version is available. The pneumatic version activates the piston using controlled air pressure. When used together with the Alfa Laval ThinkTop, you have a full overview of your tank cleaning process, including feedback signals such as open/closed and purging option.
Count on extended equipment performance and more uptime due to low-wear components that are easy to replace on site, minimizing downtime. The PlusClean® cleaning nozzle has no moving parts that extend into or retract from the tank. Durable, reliable genuine parts from Alfa Laval deliver outstanding performance, lower your total cost of ownership and preserve the value of your equipment throughout its entire life cycle.
How it works
How it works
The Alfa Laval PlusClean® cleaning nozzle is installed flush with the tank wall and/or tank bottom. Activated either by the cleaning media or by controlled air pressure, the nozzle creates a high impact force spraying cleaning media in a fan pattern directly onto the soiled area. Cleaning coverage is ensured through controlled and repeated rotation of the shaft and agitator blades.
Upon completion of the cleaning cycle, the integrated spring mechanism restores the piston to its original position, securely closing and sealing off the cleaning device. If purging is required, always operate with the actuator.
How clean is your tank?
Alfa Laval PlusClean® and Alfa Laval PlusClean® UltraPure is a revolution in hygienic tank cleaning. When activated during Cleaning-in-Place (CIP), PlusClean hits shadow areas with a fan of pressurized cleaning media, giving you the market’s first guarantee of 100% impact cleaning coverage.
360° Service and maintenance videos

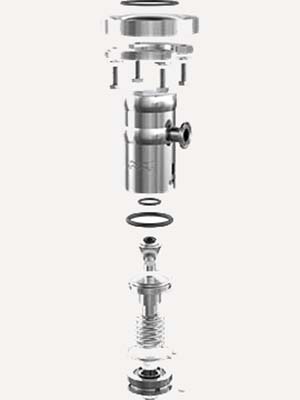

How to assemble the Alfa Laval PlusClean®
How to disassemble the Alfa Laval PlusClean®
You might also be interested in…
The TJ range of rotary jet heads is designed for hygienic applications such as food, dairy, beverage and personal care. Available in various sizes and different configurations covering any tank size.

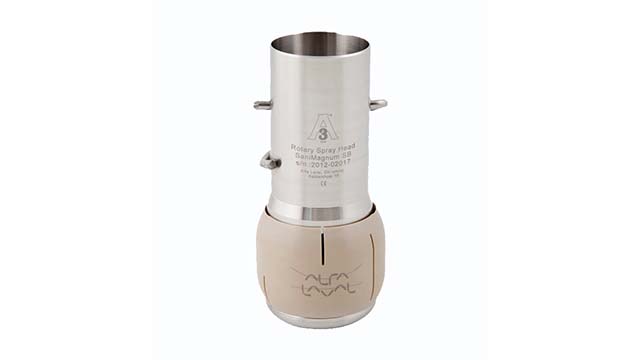

Sani SB are designed and certified according to EHEDG and authorized to carry the 3A symbol.
