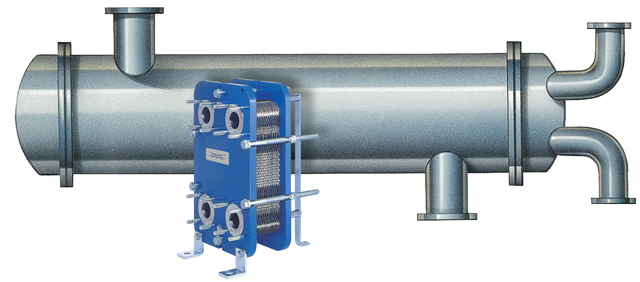

Plate Heat Exchanger vs Shell & Tube Heat Exchanger: Key Differences

What is a Plate Heat Exchanger?

A plate heat exchanger is a compact, highly efficient thermal transfer device that uses a series of thin, corrugated metal plates to exchange heat between fluids. Instead of tubes (like in shell & tube exchangers), the fluids flow through alternating channels formed by the plates. The plates are stacked together, creating a large surface area for efficient heat transfer.

Working Principle

A plate heat exchanger operates by allowing hot and cold fluids to flow through alternate channels formed by stacked plates. This arrangement creates a large surface area, which enhances heat transfer efficiency. Countercurrent flow (when the two fluids move in opposite directions) helps in improved heat recovery. This fundamental plate heat exchanger design makes it ideal for processes that require rapid and controlled temperature changes.

Key Advantages

Plate heat exchangers offer several performance benefits:

• High thermal efficiency due to increased turbulence and optimized channel design. It has a 100% counter‑current flow, this leads to Higher turbulence and better approach temperatures of 1–5°C
• Compact footprint, often requiring significantly lesser space. GPHEs deliver higher heat transfer in much smaller footprints.
• Easy maintenance, since plates can be easily opened, inspected, and cleaned. Easier access to all plates leads to faster cleaning, and lesser fouling due to higher velocity.  Timely servicing of Heat Exchangers leads to enhanced energy efficiency.
• Flexibility in plate heat exchanger design, allowing capacity adjustments simply by adding or removing plates.
• Superior approach temperatures that enhance energy savings and reduce operational costs.
  Lower Running Costs
  Safer, More Reliable Operations
  Easier gasket replacement leads to faster troubleshooting


What is a Shell & Tube Heat Exchanger?

Shell & tube heat exchangers are one of the most widely used designs globally. Their robust structure and versatility make them the preferred choice for industries working with extreme operating conditions. Many industries rely heavily on guidance from shell and tube heat exchanger manufacturers in India for customized configurations.

Shell-and-tube (S&T) heat exchangers have been around for ages and are widely used in many industries. Their popularity in Indian industrial applications comes from its easy construction, flexibility in terms of material and size customization and ability to withstand any temperature or pressure.

Working Principle

This design features a bundle of tubes housed within a cylindrical shell. One fluid flows through the tube while the other flows around them in the shell. Heat is exchanged through the tube walls. Depending on process requirements, the number of tubes, tube pitch, and shell diameter can be modified to create customized flow patterns.

Shell & Tube installation requires more area as they are heavy and have a large footprint. 100% counter current is not possible here due to limited turbulence, the heat transfer efficiency is lower.

These factors often motivate industries to evaluate plate heat exchanger performance more closely.

Modern Plate Heat Exchanger Benefits

Understanding the exact differences between these two industrial heat exchanger types is essential when choosing the right equipment.

The S&T heat exchangers have a lower thermal performance, this is mainly due to the flow regime of cocurrent flow and low turbulence. The best approach temperature reachable with most S&T heat exchangers is 5°C

Heat Transfer Efficiency

Plate heat exchangers provide far superior thermal performance because of:

• Corrugated plate patterns
• Higher turbulence
• 100% countercurrent flow

This leads to closer approach temperatures. The shell & tube exchangers typically experience partial counterflow and lower turbulence levels.

Space & Design

From a design perspective:

• Plate heat exchangers are compact, lightweight, and require minimal floor space.
• Shell & tube exchangers are preferred when space is not a constraint as they are bulky, heavier, and need space for tube removal during maintenance.

As facilities expand space becomes a constraint, many industries consult shell and tube heat exchanger manufacturers in India for more compact alternatives.

Maintenance & Cleaning

Heat exchanger maintenance is a critical factor influencing operational costs. Plates can be easily accessed, removed, and cleaned using simple tools.

Common heat exchanger cleaning methods—such as CIP (Clean-in-Place), hydro blasting, and chemical descaling—are generally far easier to implement on plate designs. Shell & tube units require mechanical rodding or chemical cleaning, which can be time-consuming.

Pressure & Temperature Handling

• Shell & tube units are superior for higher pressure and temperature applications.
• Plate heat exchangers are suitable for moderate pressures unless a brazed or welded design is selected.

 Cost Comparison

While shell & tube designs have lower upfront costs, plate heat exchangers often provide:

• Lower energy consumption
• Reduced maintenance expenses
• Smaller installation footprint

This results in lower lifecycle costs of Plate Heat Exchangers.

When to Choose Each Type

Choosing between plate heat exchanger vs shell and tube heat exchanger depends entirely on the operating conditions and process needs.

Applications of Plate Heat Exchangers

Plate heat exchangers are ideal for:

• Food & beverage processing
• HVAC and district cooling
• Pharmaceutical manufacturing
• Dairy and hygienic applications
• Heat recovery systems
• Chemical and petrochemical plants
• Oil & gas refineries.

Their ability to deliver high efficiency with a small footprint makes them perfect for energy‑focused industries.

Many organizations also partner with shell and tube heat exchanger manufacturers in India for specialized high-pressure or high-temperature builds.

FAQs

Which heat exchanger is more efficient?

Plate heat exchangers generally offer higher heat transfer efficiency due to increased turbulence and countercurrent flow.

Are plate heat exchangers easier to maintain?

Yes, plate heat exchangers are much easier to open, inspect, and clean, making them ideal for applications requiring frequent maintenance.
