50% energy savings in district heating project in Odessa, Ukraine

A thorough makeover – including boilers, pipes, heat exchangers and substations – of the district heating system within a residential area in the Ukrainian city of Odessa turned out to be somewhat of a model case. A modern 3-circuit solution with a primary side comprising the distribution network produced considerable energy savings – and thereby a very encouraging example.

Good relations and reliable technology

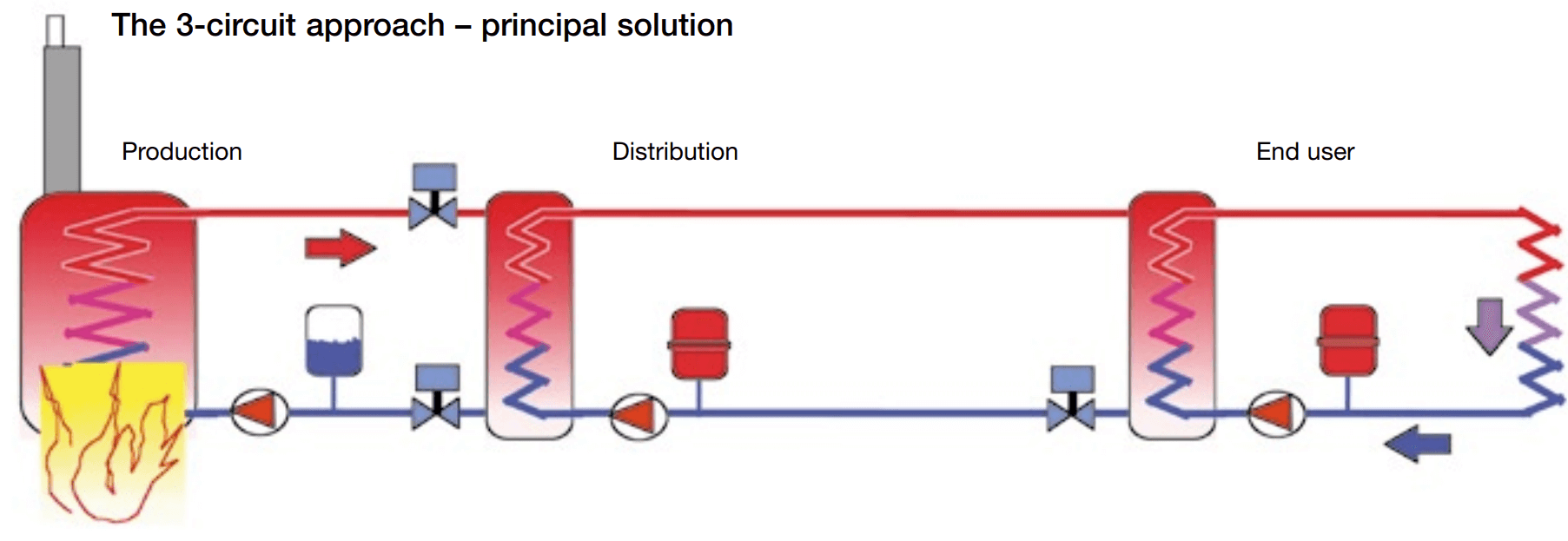

The system replaced was of traditional design, tormented by the “classical” problems of high water flows, excessive hot water tapping and inflexible heat supply. The system put into place is a modern 3-circuit solution, where the circuits for production, distribution and end-user consumptions are separated. The primary side comprises the distribution network all the way to the consumer substation.

The project included transition from three central district heating substations to 36 individual substations, equipped with 40 heat and hot water heat exchangers produced by Alfa Laval. In this project, Alfa Laval assumed the role of advisor, coordination of installations and main equipment supplier.

The customer for this comprehensive project was a municipal development company Odessateploenergo, that has been an Alfa Laval customer for more than three years. The chairman of the company, mr Valery N. Pyatov explains why Alfa Laval was a natural choice:

Well, first of all we have a very solid relationship with them. We have worked with them for a couple of years by now. For this project, they offered attractive technological solutions that have been tested in Sweden and in other parts of the world with excellent result. We put real emphasis on the reliability of the technology, and we are very satisfied."

During the project, the Alfa Laval team devised efficient routines for close interaction with the companies Logstor (pipe provider) and Petrokraft (renovation and replacement of burners including controls). In fact, this enterprise was more than a renovation project. It was in fact replacement of obsolete equipment with a completely new system, although built upon well-proven solutions for the various functions.

A primary distribution circuit

The production unit of the 3-circuit system consists of hot water along with heat exchangers, condensers, circulation pumps, water treatment equipment and instruments for supervision and control. Hot water (130°C) is used as a medium to carry the energy.

The distribution circuit between the production unit and the consumer substation is on the primary side, a fact implying a fair set of advantages. The temperature and pressure level can be kept relatively low. Since the temperature difference is larger, a high effect can be obtained with relatively modest flows. Consequently, pipe dimensions can be reduced. In turn, this means reduced energy consumption by pumps. This type of distribution network can be supported from different production units and is easily linked to looped networks in order to add capacity or ensure a stable heat supply.

On the secondary (consumer) side, substations ensure the supply of heat and eliminate some of the problems stemming from excessive tapping. Hot tap water is produced locally in every substation and the total energy consumption can be measured at one point. Water transmission due to tapping will be restricted to the consumer circuit.

Short payback horizon and considerable energy savings

From previous experience, the payback interval for this kind of project can be expected to be fairly short – i.e. due to the considerable energy savings achieved by the application of state-of-the-art (still well documented) equipment. In fact, the energy consumption in this case was no less than 35% as an annual average. The consumption of water from the district heating network was reduced 30 times (from 34 277 m3 down to 1 225 m3).
